GRASS DWD metal drawer side
From 8.93 €

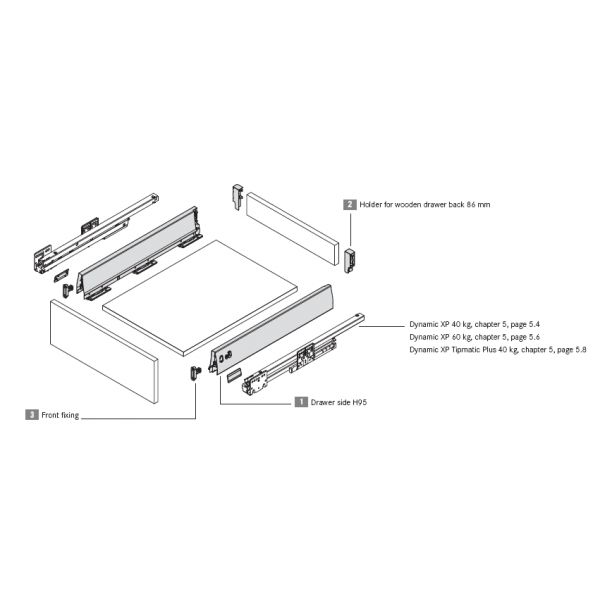

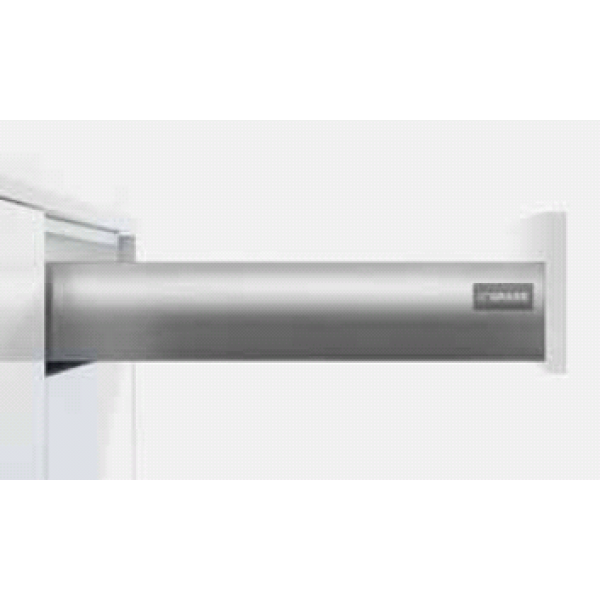

DWD - full extension metal drawer with Airmatic (RAL 9006).
Option: round reiling.
| order sample - for drawer length: 500mm | |
|---|---|
| 1 garn. | 6505.500.5 (drawer slide) |
| 1 garn. | 6100.500.17 (metal drawer side) |
| 2 pcs | 6850.VE40 (front fixing) |

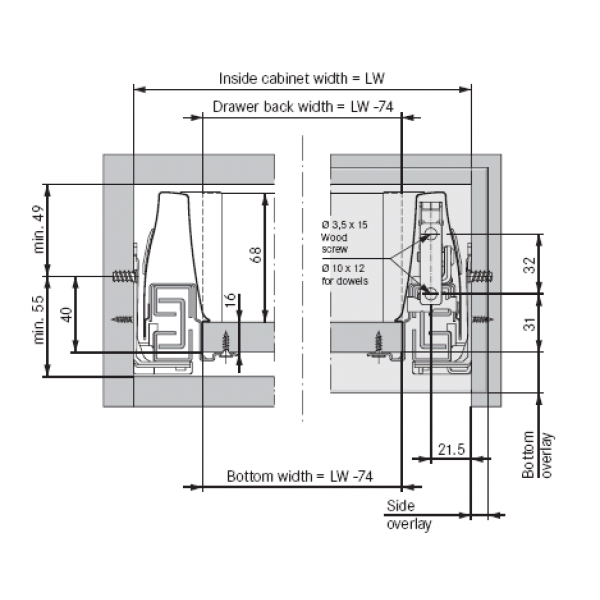

| 1 garn. | 6771.17.VE200 or 6773.17.VE200 (H=68mm or H=164mm back side fixing) |
| Option (1 garn.): | 13030.500.17 (railing set) |
The GRASS Nova Pro Deluxe silver metal drawers available in the following sizes:
- 95×275 mm
- 95×350 mm
- 95×400 mm
- 95×450 mm
- 95×500 mm
- 95×550 mm
Price/pair.
Prices shown exclude VAT.
