MINI drawer slides

From 0.46 €

Drawer slide with altering system.  The number before sign '/' is the length of slide, the number after '/' is the depth of drawer.

Finish: galvanized steel

ProductABCLoad capacity
MINI-182/313182 mm182 mm50 mm10 kg
MINI-214/347214 mm214 mm79 mm10 kg
MINI-246/410246 mm246 mm79 mm10 kg
MINI-278/458278 mm278 mm93 mm10 kg
MINI-310/521310 mm310 mm93 mm10 kg



Choose drawer slide type!

pcs.

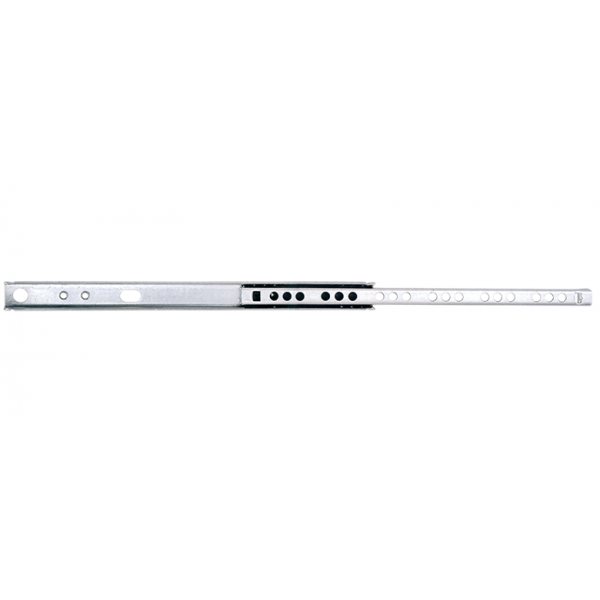

MINI drawer slide

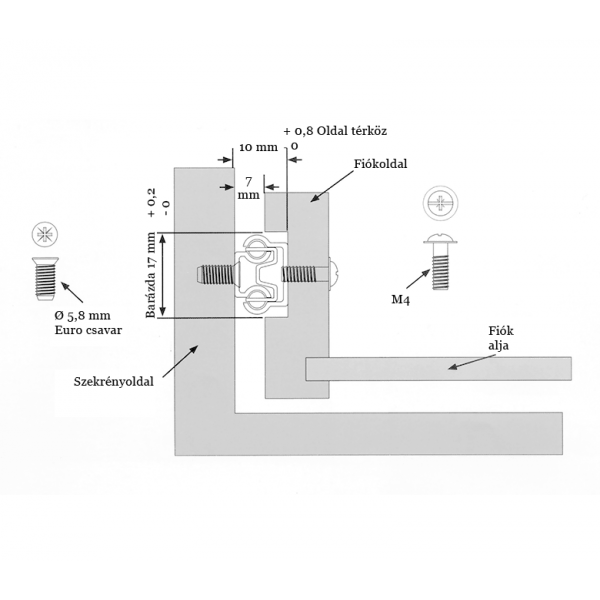

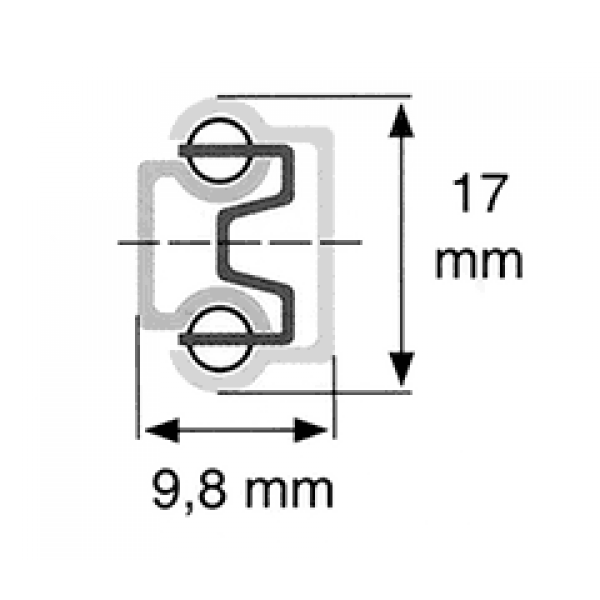

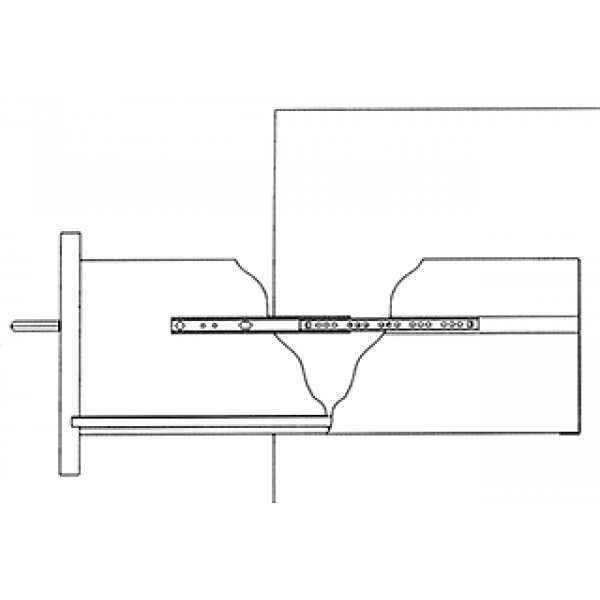

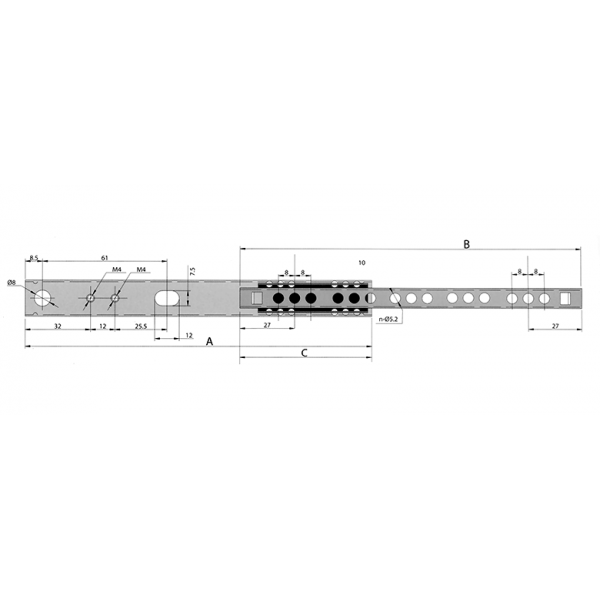

MINI drawer slideMINI drawer slide - cross-section figureMINI drawer slide - drawingA: length of rail | B: length of cabinet rail | C: Loss of extensionBuilt-in drawingBuilt-in drawing

Prices shown exclude VAT.
