Gasspring furniture fittings, Opened scissor fitting, Bed fittings

Gasspring bed actuators for single bed

36.11 €

Service instructions for installation of bed actuators for beds containing drawers.
Main parts: jointed mechanism and gas spring.

Product type

For example on product HAVP-O1V-600N

Mantling

It is recommended that the gasspring is installed with its piston rod showing downwards.

Installing instructions

Bed actuators are maintenance free

The gasspring actuator doesn't require any greasing or lubrication

Prevent gassprings from deflecting by avoiding transverse and torsional forces, they should only be loaded axially. If other attachments and components should fail, you should also prevent them from causing such transverse and/or torsional forces:

Mattress weight (kg)Extension force of gasspring (N)
30 kg600 N
35 kg700 N
40 kg800 N

(In case of mattress length of 2200 mm, extension force is stronger by 10%)



Choose an extension force!

pcs.
Gasspring for bed actuators - for single bed
Gasspring for bed actuators - for single bedGasspring for bed actuators - for single bed - sizes

Gasspring bed actuators for double bed

41.66 €

Service instructions for installation of bed actuators for beds containing drawers.
Main parts: jointed mechanism and gas spring.

Product type

For example on product FAVP-O1V-1000N

Mantling

It is recommended that the gasspring is installed with its piston rod showing downwards.

Installing instructions

Bed actuators are maintenance free

The gasspring actuator doesn't require any greasing or lubrication

Prevent gassprings from deflecting by avoiding transverse and torsional forces, they should only be loaded axially. If other attachments and components should fail, you should also prevent them from causing such transverse and/or torsional forces:

Mattress weight (kg)Extension force of gasspring  (N)
30 kg600 N
35 kg700 N
40 kg800 N
45 kg900 N
50 kg1000 N
60 kg1200 N
70 kg1400 N
77,5 kg1550 N

(In case of mattress length of 2200 mm, extension force is stronger by 10%)

Choose an extension force!

pcs.
Gasspring bed actuators for double bed
Gasspring bed actuators for double bedThe bed made by Cardo Bútor- és Matracgyártó Kft.Gasspring bed actuators for double bed - sizes

Gasspring cupboard downwards unit

2.08 €

Gasspring cupboard downwards unit



pcs.
Gasspring cupboard downwards unit
Gasspring cupboard downwards unitGasspring cupboard downwards unit

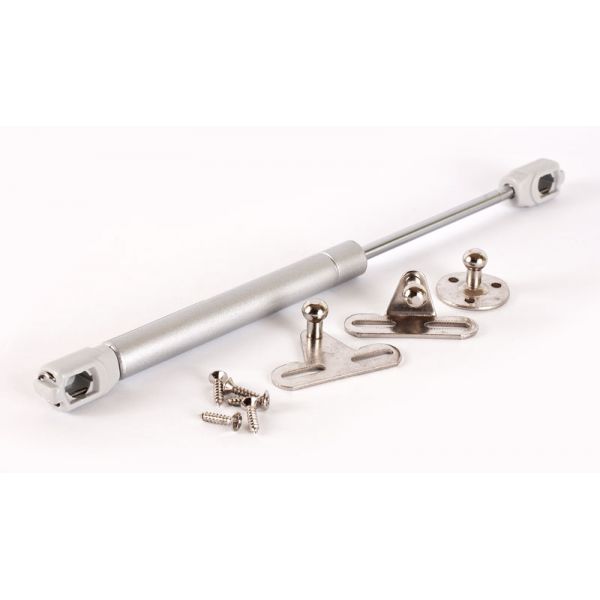

Gasspring cupboard upwards unit

1.38 €

Upwards unit:

  • 60N
  • 80N
  • 100N
  • 120N



Choose an extension force!

pcs.
Gasspring cupboard upwards unit
Gasspring cupboard upwards unitGasspring cupboard upwards unit
